SOT-AV100/130 Series
Feature
This is a free space optical transmission system that uses infrared communication to wirelessly transmit video shot by a security camera or the like to a remote TV monitor.
There is no need to install cabling, greatly reducing cost.
There are no legal restrictions on optical communication, eliminating the hassle of applications and other procedures. Optical communications also do not impact hospital or other medical equipment, enabling worry-free use.
Noise does not interfere with the video picture, enabling its use in extremely noisy environments. High image quality with almost no degradation is also maintained using frequency modulation (FM).
An SOT-RB case for outdoor use is also available as an option. (Produced to order.)
A TC-200 power unit (with cable) is also available as an option for using AC power. (Produced to order.)
Please inquire about PAL-compatible models
Specification
Model No. Descriptions
Main Specifications
|
Model
|
SOT-AV100PR
|
SOT-AV130PR II
|
|
Transfer distance
|
0.5 to 100m
|
0.5 to 130m
|
|
Power supply voltage
|
DC11 – 25V ripple 100mVp-P or less
|
|
|
Current consumption
|
Sender 150mA Max, 180mA Max
Receiver 150mA Max |
|
|
I/O signal
|
NTSC composite signal: 1 Vp-p (Z = 75 Ohm)
|
|
|
Spread of sender beam
|
Approx. 0.5°,approx. Ø0.87 m at 100 m
|
Approx. 0.7°,approx. Ø1.60 m at 130 m
|
|
Incident angle of beam on receiver
|
Approx. 5°
|
|
|
Communication method
|
1:1 one-way optical communication
|
|
|
Modulating method
|
FM (8 MHz ~ 15 MHz)
|
|
|
Sender element
|
Near infrared LED (Core wavelength: 880 nm)
|
|
|
Receiver element
|
Photodiode
|
|
|
Indicator
|
Power lamp, receiver lamp, receiving level
Level 2: Green …Stable receiving, level 1: Red …Light receiving |
|
|
Connection
|
Signal: BNC connector, power: Terminal board connection
|
|
|
Ambient operating temperature
|
0 – 50°C No freezing allowed
|
|
|
Ambient operating humidity
|
30 – 85%RH No condensation allowed
|
|
|
Ambient operating illumination
|
3,000 lx or under (Direct incident disturbance light to receiver not allowed.)
|
|
|
Vibration resistance
|
10 – 30 Hz, for 2H each in X/Y/Z direction, double amplitude -1.0 mm)
|
|
|
Shock resistance
|
500 m/s2, 10 cycles each in X/Y/Z direction
|
|
|
Weight (Main Body)
|
1.1Kg
|
1.5Kg
|

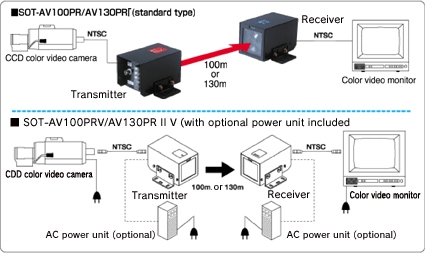

Sample System Configuration
Sample Application
Street security
Parking-lot security and monitoring
Warehouse and plant security and monitoring
