US-50/100 Series
Feature
This system is an optical wireless LAN supporting Ethernet. It is capable of a fast transfer speed of 100 Mbps. It can communicate video, voice, control signals, and more with a Web-enabled network camera without stress. Models with communication ranges of 50 and 100 meters are available.
Connects wirelessly to Ethernet via infrared, enabling high-volume communication without loss of quality.
It has a fast transfer speed of 100 Mbps.
Two communication ranges are available: 10 to 50 meters, and 15 to 100 meters.
All models can be used outdoors, making this product perfect for use between buildings or in locations where it is not feasible to lay cable.
It can connect to your existing hub or computer without modification.
Specification
Model No. Descriptions
Main Specifications
|
Model
|
US-50-SRB
|
US-100-SRB2
|
|
Transmission rate
|
100Mbps
|
|
|
Environment
|
IEEE802.3u (Fast Ethernet)
|
|
|
Interface
|
100BASE-TX
|
|
|
Transmission distance
|
10 to 50m
|
15 to 100m
|
|
Directivity
|
Approx.1.5°US-50-SRB Approx.1.0°US-100-SRB2
|
|
|
Transmission method
|
Full-duplex, bi-directional
|
|
|
Power voltage
|
AC90 – 110V
|
|
|
Power consumption
|
10W
|
|
|
Auxiliary function
|
Change test mode (using switch)
Change luminescence power (using switch) Turn 100 BASE-TX link on and off when shielded (using switch) |
|
|
Indicator
|
Power indicator lamp Unit optical reception level indicator lamp Link indicator lamp Transmission/reception indicator lamp
Test confirmation indicator lamp |
|
|
Seder element
|
Near infrared light emitting diode
|
|
|
Receiver element
|
Photodiode
|
|
|
Ambient operating temperature
|
-10 to 50°C No freezing allowed
|
|
|
Ambient operating humidity
|
10 to 85%RH No condensation allowed
|
|
|
Ambient operating illumination
|
Solar beam : 10,000 lx or less,
Fluorescent, incandescent lamps : 3,000 lx or less No externally disturbed light shall directly enter the receiver. |
|
|
Enclosure rating
|
IP64
|
|
|
Weight
|
4.9Kg (Include fixture and case)
|
|

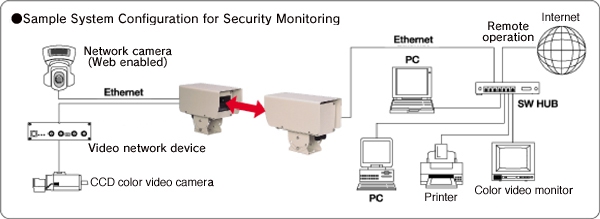

Sample System Configuration

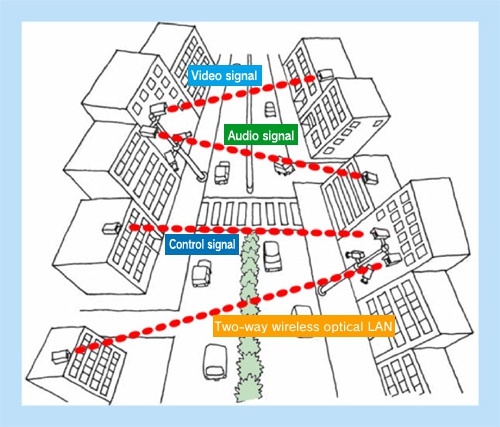

Sample Applications (for street security camera monitoring)
