SOT-GS80/150 (CC-Link Support Type)
Feature
Supports CC-Link Ver. 1.10
CC-Link networks give great freedom in building easy-to-use lines. CC-Link’s partner product, the space optical transfer system, enables the creation of a system from a large number of distributed I/O devices, reducing costs by reducing the amount of cabling necessary. This is especially useful when communicating with mobile units in an automated conveyance system. There is no need for an interface unit to connect directly to the CC-Link. A single master unit can be used to connect this product to up to 42 units. Up to 23 words of data can be transmitted per communication exchange. Extended mode can also be used to send and receive up to 1,000 words of data. Terminal block connectors are used for connecting. The connected units can be products from the CC-Link interface series, as well as our SOT-GS80 series (80 meters) or SOT-GS150 series (150 meters)of RS232C/422/485 interfaces.
Specification
Model No. Descriptions

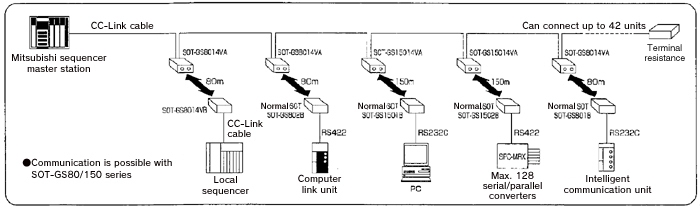

Sample System Configuration
CC-Link Specifications
Sequencer
|
Made by Mitsubishi Electric Corporation
Supports A series, QnA series, and Q series |
Master unit
|
AJ61BT11, A1SJ1BT11, AJ61QBT11, A1SJ61QBT11, QJ61BT11
|
Communication method
|
Control & Communication Link (CC-Link)
|
Num. stations occupied
|
Select 1, 2, 3, or 4 stations
|
Transfer channel
|
Bus
|
Transfer format
|
HDLC
|
Link connection
|
Terminal block connector (MSTB 2.5/5-ST-5.08)
|
Max. communication range
|
1,200 m(depends on transfer speed)
|
Transfer speed Select
|
10 M, 5 M, 2.5 M, 625 K, or 156 Kbps
|
Specifications
Model
|
SOT-GS8014V □
|
SOT-GS15014V □
|
||||||||||||||||||
Power voltage
|
24 V DC ±10% ripple; 500-m Vp-p or less
|
|||||||||||||||||||
Current consumption
|
100mA MAX (at DC24V)
|
|||||||||||||||||||
Transmission distance
|
0 – 80m
|
0 – 150m
|
||||||||||||||||||
Directivity
|
2 deg. horizontal/vertical (default at max. communication range)
|
|||||||||||||||||||
Modulation method
|
FSK
|
|||||||||||||||||||
Transmission method
|
Full duplex (non-procedure)
|
|||||||||||||||||||
Synch. method
|
Synch. method Asynchronous
|
|||||||||||||||||||
Transmission rate
|
2400/4800/9600/19200 bps |
|||||||||||||||||||
Optical transmission conditions
|
|
|||||||||||||||||||
Indicator
|
POW (red) lights up when power is on
CD (red) lights up when optical transmission is being received SD (red)/RD (green) lights up red when optical data is being sent Lights up green when optical data is being received LEVEL (green) 2-level optical reception-level indicator L-RUN (green) lights up when data has been updated successfully from the master unit L ERR (red) lights up when there is an error in the data received from CC-Link Off when update is successful SD (red) lights up when sending CC-Link data RD (green) lights up when receiving CC-Link data |
|||||||||||||||||||
Setting switches
|
Transfer speed One rotary switch for setting CC-Link transfer speed
Code setting Two rotary switches for setting remote code Transmission conditions 1 DIP switch for setting optical |
|||||||||||||||||||
transmission conditions
|
Auxiliary output CD (optical output) 0 when receiving; 1 when blocked
ALM (reduced optical output) 0 when reception level is normal; 1 when reduced Output to master unit’s batch-refresh data reception area (If user area 1 or A is used, there is no auxiliary output) |
|||||||||||||||||||
Connection method
|
Terminal block connector (MSTB 2.5/5-ST-5.08)
|
|||||||||||||||||||
Check pin
|
Optical reception level can be measured
Use 10K Ohm/V or higher tester; DC voltage range |
|||||||||||||||||||
Ambient operating temperature
|
-10 to +50°C
|
|||||||||||||||||||
Ambient operating humidity
|
40 – 85% RH No condensation allowed
|
|||||||||||||||||||
Ambient operating illumination
|
3,000 lx or less (but receiver must not be exposed to direct light source)
|
|||||||||||||||||||
Enclosure rating
|
IP30
|
|||||||||||||||||||
Vibration resistance
|
Frequency: 10 to 55 Hz Total amplitude: 1.5 mm 2 hours each in 3 directions (X/Y/Z)
|
|||||||||||||||||||
Shock resistanse
|
98 m/s2 10 times each in 3 directions (X/Y/Z)
|
Note: This system uses full duplex communication. For this reason, use either all types A and B, or all types C and D, in order to avoid cross talk on sending and receiving frequencies. Always use units in A-B or C-D pairs.
Note: Not compatible with SOT-VS type.
Note: Detailed information about these types is available on request.
